Stainless Tool Steels

HEYE stainless tool steel is selected depends upon the specific alloy designing,which exhibits well corrosion resistance and mechanical properties,The stainless tool steel is suitable for using in wet,acidic or corrosion conditions.

Mfrs:HeYe Special Steel Co.,Ltd.

Sales manager:Li Haishan

E-mail:lhs@hss-cn.com

Product manager:Li Hui

E-mail:hss_lihui@sina.com

Made in:Hebei,China

Tel:0311-88382278/88382262

Fax:0311-88382288

Tel:0311-88382066

Fax:0311-88382027

Application domain:food processing、medical instrument、industrial shearing blade、corrosion and wear resistant component.

Product introductionProduct specificationsOnline consulting Product information download

For some special applications,there are two types of tool failure occur in combination,the first one is due to direct contact between working materials and tools during operation,and the second is due to corrosive working conditions.In order to have a satisfied tool life,the tool steel must be highly resistant to corrosion,in addition,it must possess sufficient mechanical properties.



The grades of stainless tool steel produced by HEYE include 11Cr179Cr18MoHOP340HSF340, and the steels are produced by ESR, powder metallurgy or spray forming process, those carefully chosen metallurgical processes make the HEYE products exhibit finer, more uniform carbide distribution imparting improved toughness and grindability.



11Cr17

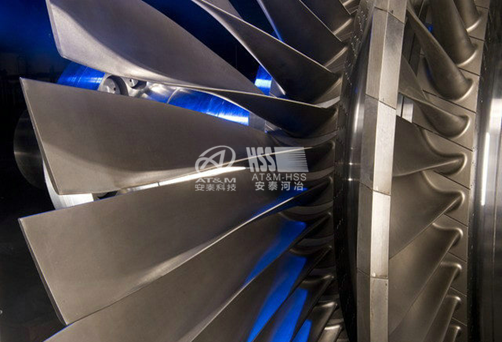

martensitic stainless steel,high hardness and corrosion resistance, good hardenability,suitable for the manufacture of air conditioning compressor vane, steam turbine blades and valve, bolt used in the condition of erosive medium.



HOP340

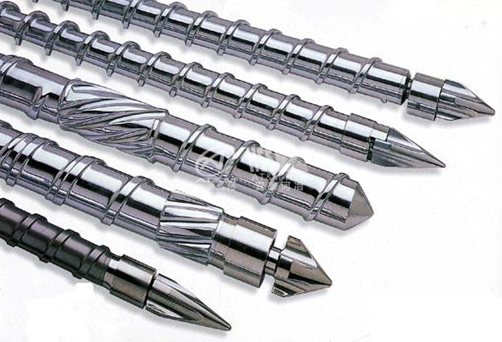

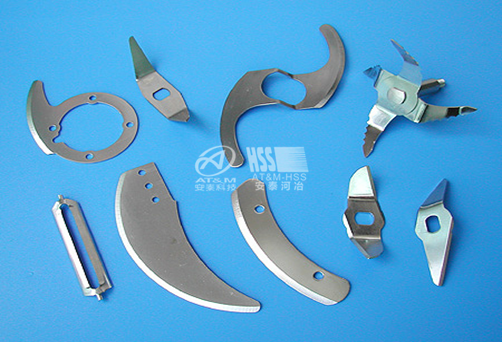

martensitic stainless steel, high Cr and high V containing, produced by powder metallurgy process, the carbides is fine and distribut uniformly, excellent corrosion resistance and wear resistance, suitable for the manufacture of plastic injection and extrusion feed screws, food processing tools, surgical instruments, industrial shear blade, wear-resistant and corrosion-resistant components, etc.

Specification
Type Specification (mm) Surface condition

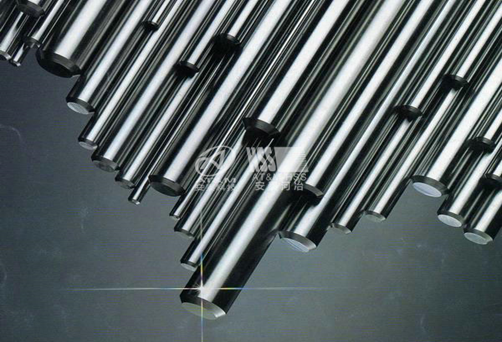

Forged Round Bar 80-300 Turned/Black
Hot-rolled Round Bar 8-25 Black
21-95 Turned/Peeled
Peeled Bar 15-150 Turned
Hot-rolled Square Bar 7.2×7.227×27 Black
Hot-rolled Flat Bar (3.5-40)×(16-100) Black/Shot Blast
Forged Flat Bar (20-200)×(40~400) Black/Milling
Hot-rolled Wire Rod 5.5-17 Black/Blasting Bickling
Cold-drawn Steel Wire 2.0-16.5 Black
Ground Wire 5.0-14.5 Ground
Steel Plate (2.0-15.0)×(500-700) Black
Hot-rolled Strip (36-65)×(1.5-3.0) Black
Cold-rolled Strip (25-55)×(0.65-1.80) Polished
Forged Product Circular(50-350)×(10-300) Black/Machined
Rectangle(20-200)×(5-80)
Welded-blank, wimble blank, roller blank, hollow broacher blank, prefabricated Shield roll ring and other extension product.
