Stainless heat-resistant steel is mainly martensitic steel of Cr12 series, mainly used for high temperature bolts and other fasteners and turbine blade, it has stable performance, high temperature strength and good relaxation resistance.
Mfrs:HEYE Special Steel Co.,Ltd.
Sales manager:Li Haishan
E-mail:lhs@hss-cn.com
Product manager:Li Hui
E-mail:hss_lihui@sina.com
Made in:Hebei,China
Tel:0311-88382278/88382262
Fax:0311-88382288
Tel:0311-88382066
Fax:0311-88382027
Application domain:turbine blade、high temperature bolt、valve rod
Stainless heat-resistant steel, manufactures by HeYe, is evolved on the basis of Cr12 martensitic stainless steel. We add more W, Mo, V and other heat strong elements into Cr12 steel, so that it will have better high temperature physical properties.
Our products mainly include 2Cr12MoV, 2Cr12NiMo1W1V, X18CrMoNbVN11-1 (X19CrMoNbVN11-1), etc..

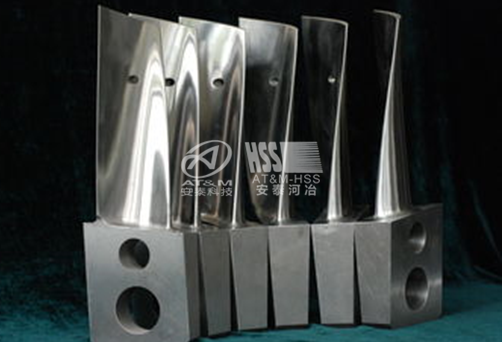

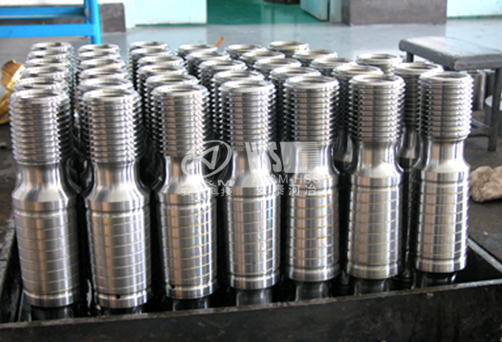

2Cr12NiMo1W1V mainily used in turbine blades and high temperature bolts, fasteners and other special steel, which is a standard steel with reasonable distribution ratio and stable performance, and has a wide range of steel grades in high temperature applications, the maximum temperature reached 560℃, with small notch sensitivity and sound performance of shock absorption and excellent relaxation resistance.

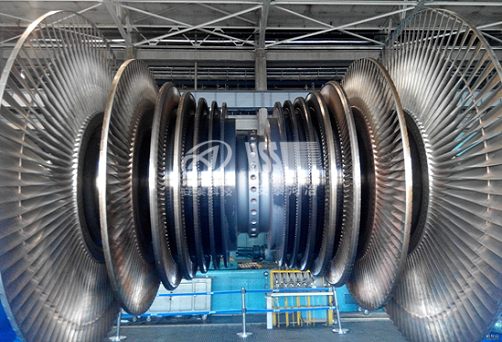

X18CrMoNbVN11-1 is the European standard grade of steel, mainly used for ultra supercritical steam turbine blades, the use of the temperature reached more than 600 ℃, with good mechanical properties at high temperature and stress rupture properties.
Company's major product lines include MF+LF+VD+ESR+ precision forging/rolling, producing machines. Products have the advantages of high dimensional accuracy, perfect surface, well organization and good stability.
In addition, we rely on personnel and technical advantages of Mold Steel Research Center and Postdoctoral Workstation to actively expand and develop other non label numbers, and can produce other stainless and heat-resistant materials according to customer needs.
|
Specification |
||
|
Form Supplied |
Size (mm) |
Surface Condition |
|

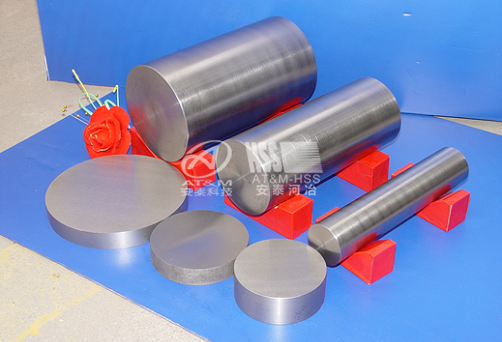

Round Bar |
φ12-30 |
Black |
|
φ30-410 |
Roughly Turned / Black |
|
|
Bright Bar Material |
φ5.0-14.5 |
Ground |
|
φ12-410 |
Peeled |
|
|
Square Bar |
7.2×7.2~27×27 |
Black |
|
Flat Bar |
(3.5-40) ×(13-100) |
Black / Shot Blast |
|
(20-200) ×(40-400) |
Black / Milled |
|
|
Wire Rod |
φ5.5-17 |
Black / Ground |
|
Drawn Wire |
φ0.8-14 |
Black / Ground |
|
Prehardenend Bar |
φ1.0-15.0 |
Black |
|
Strip Material |
(33-65) ×(1.5-3.0) |
Black |
|
(25-55) ×(0.65-1.80) |
Polished |
|
|
Sheet Material |
(1.0-10) ×(500-850) |
Black |
|
Forged Product |
Roundφ(50-350)×(10-300) |
Black / Machined |
|
Rectangle(20-200)×(5-80) |
||
|
Welded-blank, wimble blank, roller blank, hollow broacher blank, prefabricated Shield roll ring and other extension product. |
||
